Thread: My new home...

  1. #1
    Join Date
    Oct 2007
    Location
    Milwaukee,WI
    Posts
    1,068

    My new home...

    New construction Pharmecuitical lab. I'll post all progress pics in this thread. This is all I have for now. Pics are a little old already.

    24" rounds 10ga stainless duct on pipe bridge for Thermal Oxidizer:





    Tank farm:





    Misc pics of the job:

    ___________________________

    Chicago is an indian word for stinky!!!!!!
    -supertek65

  2. #2
    Join Date
    Dec 2007
    Location
    Ohio
    Posts
    2,875
    Quote Originally Posted by Lash View Post
    24" rounds 10ga stainless duct on pipe bridge for Thermal Oxidizer
    Or a kick ass water slide!!



    Nice pics!
    I need a new signature.....

  3. #3
    Join Date
    Mar 2007
    Posts
    3,103
    I'm looking forward to seeing how this turns out. Your hospital thread was epic, Lash.

  4. #4
    Join Date
    Oct 2008
    Location
    Wisconsin
    Posts
    44
    This wouldn't happen to be Cambridge Major would it?

  5. #5
    Join Date
    Oct 2007
    Location
    Milwaukee,WI
    Posts
    1,068
    Quote Originally Posted by vegaman04 View Post
    This wouldn't happen to be Cambridge Major would it?
    Maybe...why?
    ___________________________

    Chicago is an indian word for stinky!!!!!!
    -supertek65

  6. #6
    Join Date
    Oct 2007
    Location
    Milwaukee,WI
    Posts
    1,068
    Update...

    Corridor duct..




    Misc. Aluminum exhaust duct...



    Galv. and Alum. floor sweeps....supply and exhaust. Diffusers will be installed later...



    Small MUA unit in pump room...


    HVAC boilers..


    Process pump skids...

    ___________________________

    Chicago is an indian word for stinky!!!!!!
    -supertek65

  7. #7
    Join Date
    Oct 2007
    Location
    Milwaukee,WI
    Posts
    1,068
    Prod. corridor loop system...

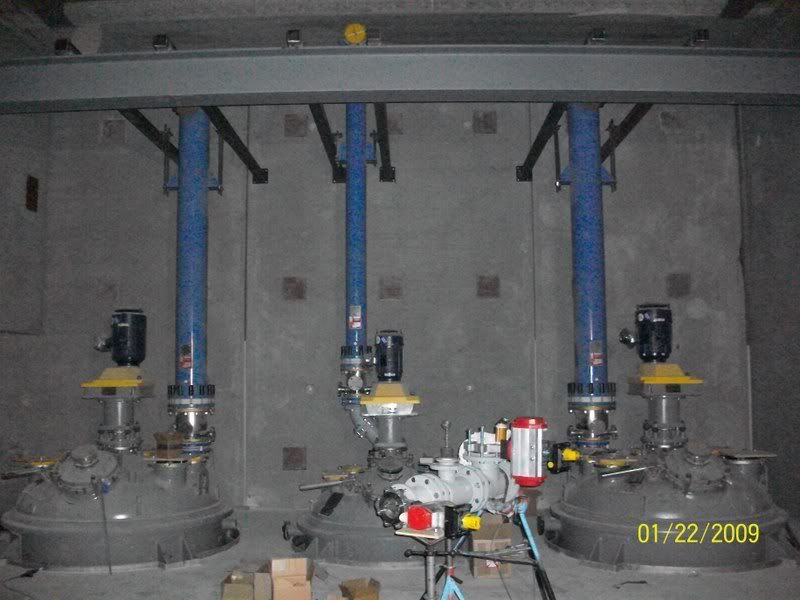

    Bottom/top of reactors with...



    Stainless holding tank...




    Thats it for now.
    The company I work for is doing the HVAC, Process piping, Plumbing, and Fire Protection on this job. Lots to take pictures of.



    Check for updates again soon.
    ___________________________

    Chicago is an indian word for stinky!!!!!!
    -supertek65

  8. #8
    Join Date
    Oct 2007
    Location
    Milwaukee,WI
    Posts
    1,068
    Quote Originally Posted by BergerMech Rob View Post
    I'm looking forward to seeing how this turns out. Your hospital thread was epic, Lash.

    You just don't see very many pictures of the big jobs on here. I just figure some people might like it because they never get to experience jobs of that size.
    ___________________________

    Chicago is an indian word for stinky!!!!!!
    -supertek65

  9. #9
    Join Date
    Feb 2004
    Location
    SW Florida
    Posts
    1,260
    Nice spiral. Reminds me of the good old days at Johnson and Johnson in Racine, Abbott Labs and UL in N Chicago, Searle Pharma, Great Lakes NTC expansion all many moons ago

    Alot of money in those little pills

  10. #10
    Join Date
    Jul 2006
    Location
    Lewisburg, WV
    Posts
    154
    Thanks for the pictures Lash. Keep em coming! I love to see pictures of the larger industrial jobs.

  11. #11
    Join Date
    Oct 2007
    Location
    Milwaukee,WI
    Posts
    1,068
    Quote Originally Posted by jcrank View Post
    Thanks for the pictures Lash. Keep em coming! I love to see pictures of the larger industrial jobs.
    On the HVAC side.....I'd say about 60-70% of it is commercial-ish. A large part of this job is just spiral duct....and your usual TDC/ S & Drive duct. The steamfitters and plumbers have a lot of industrial work in the building.

    I have never seen this much aluminum spiral in my life. I didn't realize how much of it I had to order. It's probably close to 2,000'......plus hundreds of aluminum fittings.
    We have a ton of 10ga stainless oxidizer duct to run on the roof too.
    Lots of neat stuff on this job.
    ___________________________

    Chicago is an indian word for stinky!!!!!!
    -supertek65

  12. #12
    Join Date
    Jun 2004
    Location
    Western MA.
    Posts
    508
    Is that welded drainage pipe I see?

    If so ,why?

    Just curious because I`ve never seen that done before.
    I love overtime I just hate working for it.

  13. #13
    Join Date
    Oct 2007
    Location
    Milwaukee,WI
    Posts
    1,068
    Quote Originally Posted by sirjames View Post
    Is that welded drainage pipe I see?

    If so ,why?

    Just curious because I`ve never seen that done before.
    Yup....carbon welded steel. Needed to be carbon because of the possibility of extremely hot water and other liquids (chemicals) melting a PVC drain. Welded because it limits the possibility of a future leak. Hot water+ leaky fitting+ people under= ouch. All the floor drains in the production areas are welded carbon steel.
    I never knew our plumbers could weld .

    You should see all of the tig welded stainless drains that are under the ground. I was I had pictures of that.

    Edit:
    I forgot to add that some of the floor drains are also welded carbon steel because they are drained into a separate tank in the event that a drum of chemicals was accidentally spilled
    Last edited by Lash; 01-23-2009 at 04:39 PM.
    ___________________________

    Chicago is an indian word for stinky!!!!!!
    -supertek65
