New VCU Medical Education Center
Had a unique opportunity to recently tour mechanical spaces of the new McGlothlin Medical Education Center on the Virginia Commonwealth University campus, and I thought you guys might like to see some of the "big stuff" they are using. This is a nearly complete, 12 story, approximately 200,000 square foot building that will contain classrooms, auditoriums, offices, and operating room simulation rooms. It is LEED Silver certified. Primary air is supplied by 3 Large Semco Pinnacle Primary Ventilation units. Each unit contains supply and exhaust fans with VFDs, and energy wheel, dehumidification wheel, chilled water, hot water, and steam coils. Cooling is provided by 3 Carrier Evergreen Chillers, also with VFDs. Steam is provided by a central steam plant that also supplies steam to the rest of the downtown campus, while I believe the water is heated locally. Terminal heating and cooling is provided by radiators and chilled beams. Kudos to all who were involved with this project! Excited to see the place open this Spring!

Here's one of the large auditoriums. Projected images will be provided by 2 projectors, blended into one image. Each student is provided a microphone, power and ethernet ports for laptops.

Overall view of mechanical penthouse, showing 2 of the 3 chillers

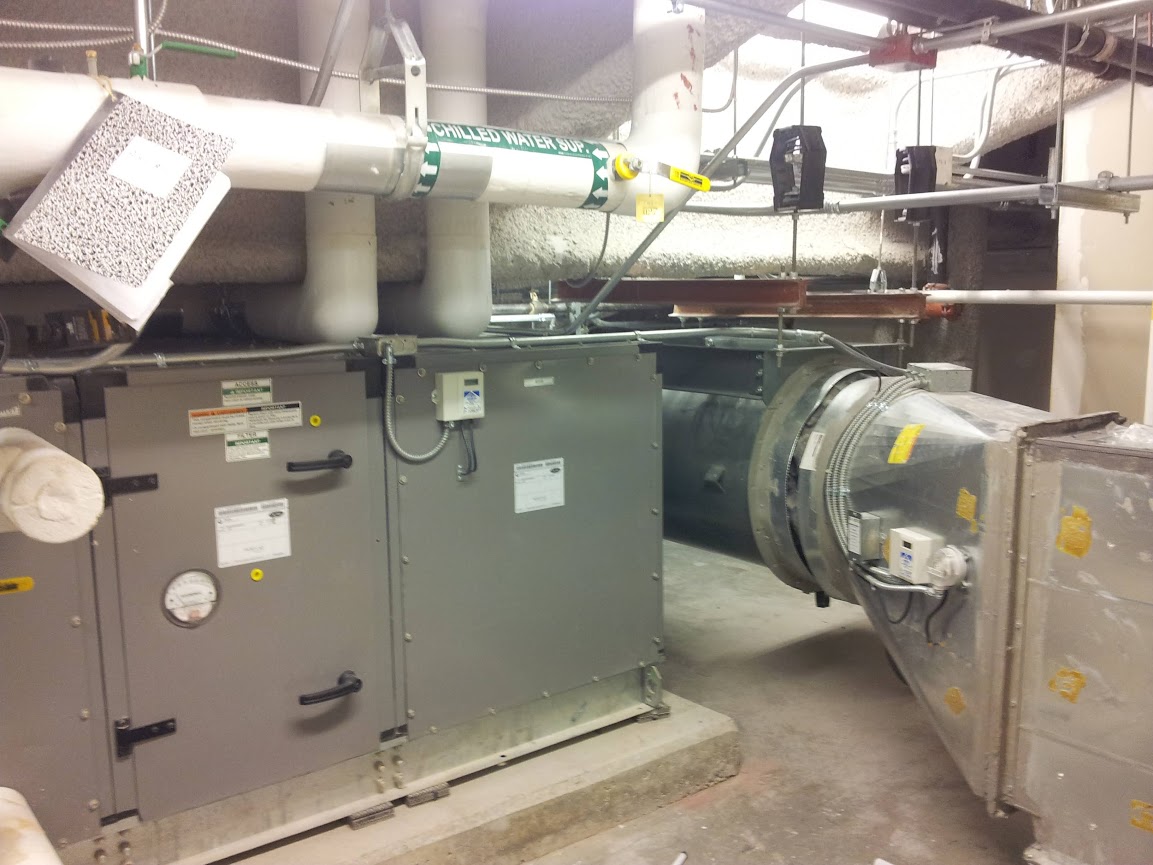

Varoius views of the 3 Primary Air Handlers. Note the composition notebook filter logbook in the last picture As a reference for size, each access door is about 6 feet high.

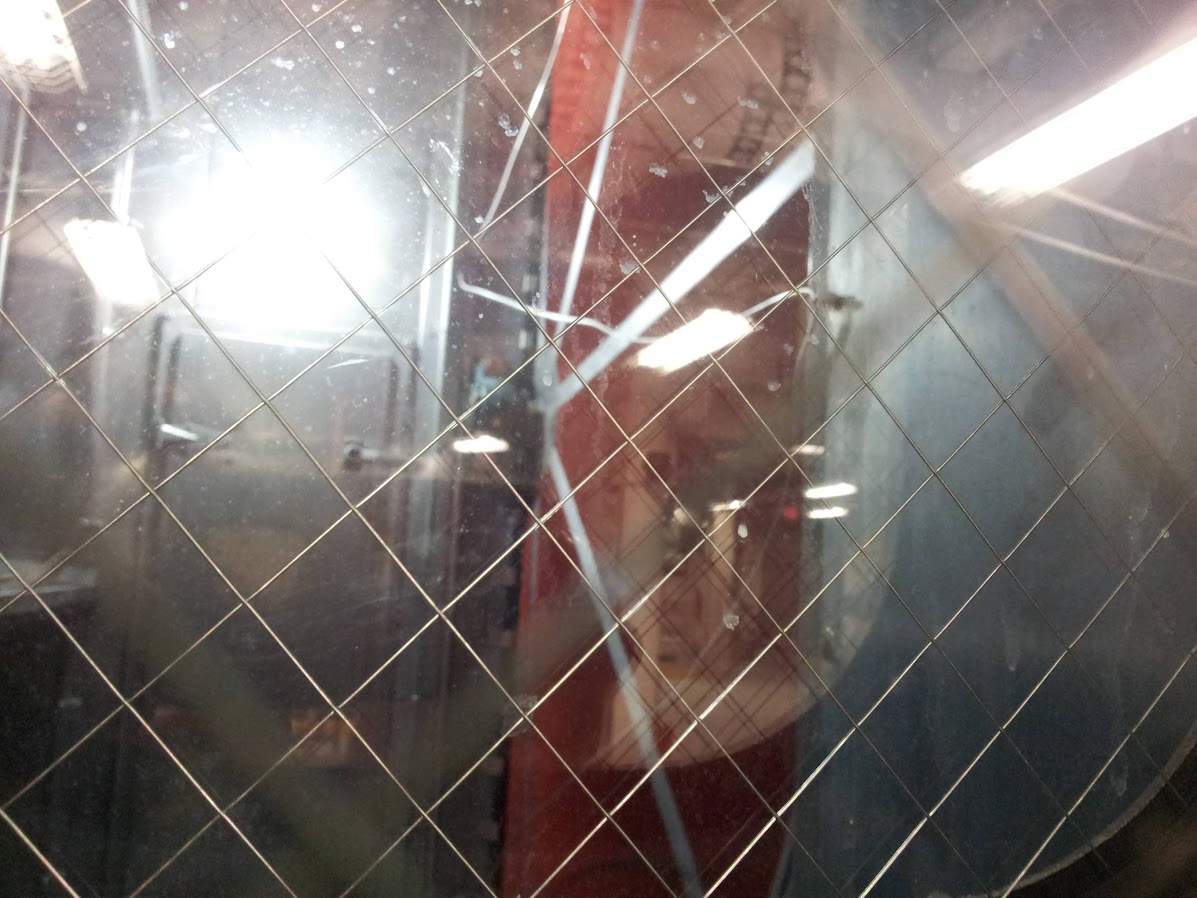

Blurry, but here is an inside look at the energy wheel.

Chilled water coil.

Dehumidification wheel.

Main control panel for AHU-3. BACview controllerin the middle. Exhaust and Supply VFDs to the left.
Continued in next post!
-
Part 2!
Continued!

1 of the 3 Carrier Evergreen Chillers.


Various pumps in the penthouse.

Heating water pipes. Not sure what this "station" is for, but they were testing control valves when this picture was taken.

Main steam connection in the "steam tunnel"

One of the many chilled beams.


Here's a cool part of the building. In the sub basement, there is a large tank that is used to house rain-water that will be used to flush all of the toilets.

Rain-water pumps with VFDs.

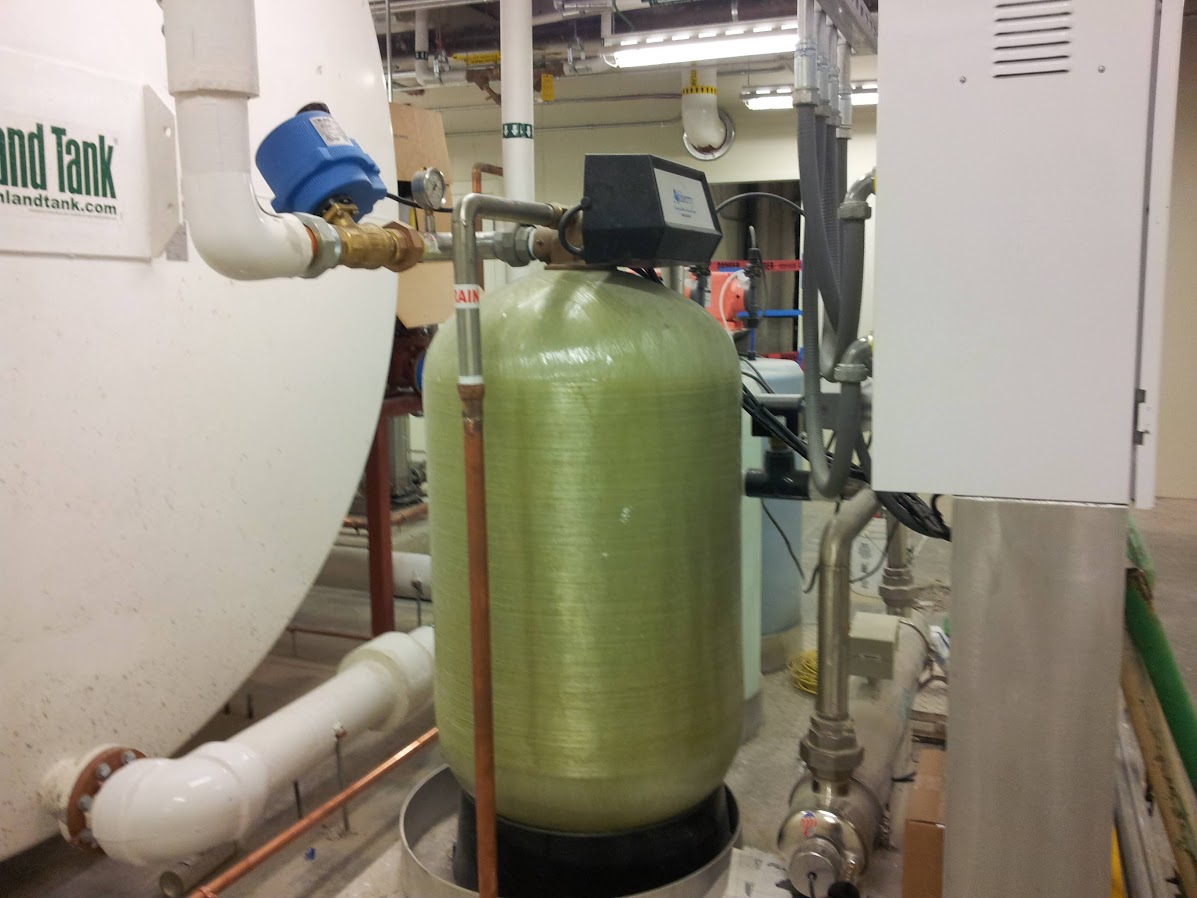

Rain-water treatment.

Main fire pump. BIG motor!
That's all, hope you enjoy!
-
Neat, I did enjoy seeing them. Thanks for taking the time to post.
-
Cool!
I literally live six blocks from where they're building that.
-
Reminds me of when I worked at the James Center Towers. Nice to see some fellow RVA's here!
-
Very cool! Makes me wish I was in big buildings again!
-
Wow, they have an incredibly efficient system there. The energy savings should pay for ALL of the equipment in 10 years or so depending on your energy rates. So they went chilled beams throughout the facility - should be nice and quiet. Are they all Carrier induction beams or did they go with the SEMCO/Flaktwoods chilled beam offering?
Last edited by jchilling; 07-24-2013 at 06:58 PM.
-
Nice looking job for sure , nothing warms my heart more than a clean Mechanical room and a quality install
-
Hey, thanks for posting those pics! That audiovisual system in the auditorium was my "baby" that's one of my coworkers down there up front. It was a total PIA lining those projectors up to blend the pictures seamlessly. Downstairs of the auditorium are the two big racks of processing equipment that make it all work. Great to see the "masterpieces" of other trades working down there...we all did a great job on that place!
-
 Originally Posted by stevenw
Hey, thanks for posting those pics! That audiovisual system in the auditorium was my "baby" that's one of my coworkers down there up front. It was a total PIA lining those projectors up to blend the pictures seamlessly. Downstairs of the auditorium are the two big racks of processing equipment that make it all work. Great to see the "masterpieces" of other trades working down there...we all did a great job on that place!
stevenw,
Did you work for Whitlock then? I had a friend who worked with VCU A/V Services that help with some of the digital signage integration in the building.
Indeed, the building did turn out quite well and I sure am glad I got to tour some of the unseen aspects of the place!
 Originally Posted by jchilling
Wow, they have an incredibly efficient system there. The energy savings should pay for ALL of the equipment in 10 years or so depending on your energy rates. So they went chilled beams throughout the facility - should be nice and quiet. Are they all Carrier induction beams or did they go with the SEMCO/Flaktwoods chilled beam offering?
jchilling,
From what I can remember, they were the SEMCO/Flaktwoods ones.
-
I posted these a while ago, but here are some more pics to enjoy:

A view from the top

Typical chilled beam installation

Conference room A/V Rack



Smaller air handler that serves the main auditorium

Basement Electric Room

VFDs

HVAC Controls

Cooling Towers
